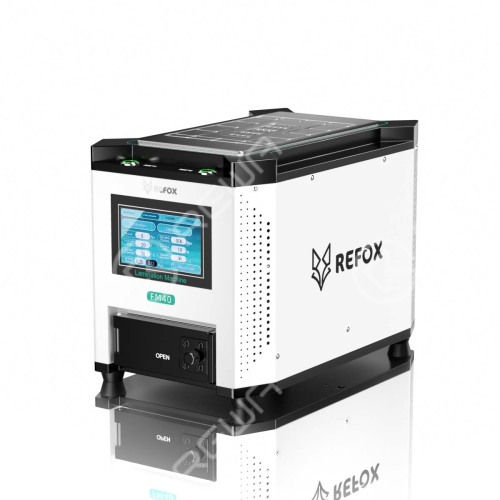

REFOX FM40 Desktop Laminating Machine for Curved / Flat-Screen Refurbishment

The REFOX FM40 Laminating Machine is a versatile desktop device that combines separation, lamination, and bubble removal functions. FM40 is typically used for phone/tablet screen separation, front glass lamination, OCA bonding, and bubble removal. It features automatic vacuuming without the need for an external air compressor or vacuum pump.

This machine's heating platform is capable of separating flat screens up to 12.9 inches, including iPads and Android tablets. Meanwhile, the lamination and bubble removal chamber of the machine is particularly suitable for devices with flat or curved screens up to 7 inches. Bonding and bubble removal processes are completed in one step, resulting in high precision and efficiency.

Purchase a REFOX FM40 laminating machine. You can earn a free 1-month trial of Broken Screen and Back Glass Refurbishment Course, updated by REWA Academy.

Features | FM40 Desktop Laminating Machine

• Integrated Design: Combines separation, lamination, and bubble removal into one desktop device without the need for other external equipment, simplifying the screen repair process.
• Automatic Vacuuming: Features automatic vacuuming to ensure precise lamination between the LCD/OLED and front glass/touch digitizer/bezel during the repair process, eliminating air bubbles and improving repair quality.
• Wide Applicability: Suitable for various mobile phones, tablets, and even wearables, including the complete iPhone series, curved-screen phones (lamination & bubble removal only), tablets (separation only), and wearables (lamination & bubble removal only), it meets a wide range of devices' repair needs.
• Upgraded Efficiency: The device is easy to operate, applicable to separation for screens up to 12.9 inches and lamination with bubble removal for screens up to 7 inches. This enhances repair efficiency, reduces repair time, and helps repair professionals better serve customers.
• Enhanced Performance: The lamination and bubble removal capabilities have been enhanced, delivering a maximum 0.68 Mpa/98 Psi pressure due to building in a more powerful air compressor.

Applications for FM40 Lamination Machine

1. Broken Front Glass Replacement

Support replacing broken front glass for phones/tablets/wearables, if the LCD/OLED/touch layer is intact.

2. Separation of Flat Screens (up to 12.9 inches)

Support separating flat screens up to 12.9 inches, suitable for devices including phones, tablets, and watches.

3. Lamination and Bubble Removal of Flat & Curved Screens (up to 7 inches)

Allow laminating without any air bubbles for both curved & flat screens up to 7 inches.

Package List

• Desktop Laminating Machine*1
• Mobile phone separation and adsorption silicone pad*1
• Tablet separation and adsorption silicone pad*1
• Flat screen pad for lamination*1
• Curved screen pad for lamination (Z type)*1
• Curved screen pad for lamination (K type)*1
• iPhone 12 mini Front Glass (With OCA Pre-installed)*3
• iPhone 12 / 12 Pro Front Glass (With OCA Pre-installed)*3
• iPhone 12 Pro Max Front Glass (With OCA Pre-installed)*3
• iPhone 13 mini Front Glass (With OCA Pre-installed)*3
• iPhone 13 / 13 Pro Front Glass (With OCA Pre-installed)*3
• iPhone 13 Pro Max Front Glass (With OCA Pre-installed)*3
• Power Cable*1
• Tray*1
• User Manual*1

Packing

• EPE Foam + Plastic Film + Carton Box
• Packing Size: 520*365*370mm

The Attentions For Using the REFOX FM40 Edge Screen Laminator

1. Curved screen lamination excludes the Huawei Mate 30 Pro and Mate 40 Pro.
2. This equipment only supports lamination and bubble removal for flat-screen and curved-screen phones.
3. Upon receiving the machine, it is recommended to run a test without any materials to ensure proper functioning.
4. Before lamination, ensure that the screen surface to be laminated is free from oil, dust, water, etc.
5. Set the laminate pressure appropriately to avoid screen damage. Excessively high or low pressure can adversely affect screen laminate effects.
6. The machine operates under high pressure during bubble removal. Check if the bubble removal chamber door is securely locked before starting bubble removal.
7. Do not set the bubble removal chamber temperature too high, as higher temperatures increase the risk of re-bubbling.
8. Regularly wipe and clean the machine to ensure it is free of debris and dust accumulation.
